Tablet sorting for the
pharmaceutical industry

Tablet Checker – KA

For decades, the inspection or checking of tablets has been an important production step for verifying and ensuring process quality. The tablets can be checked for gaps, cracks, bending, breakage and contamination, and, of course, their thickness can be verified.

The L.B. Bohle KA checker is the perfect system for mechanical checking of thickness of tablets or capsules.

Tablet Checker KA


Sorting with the L.B. Bohle
Tablet Checker

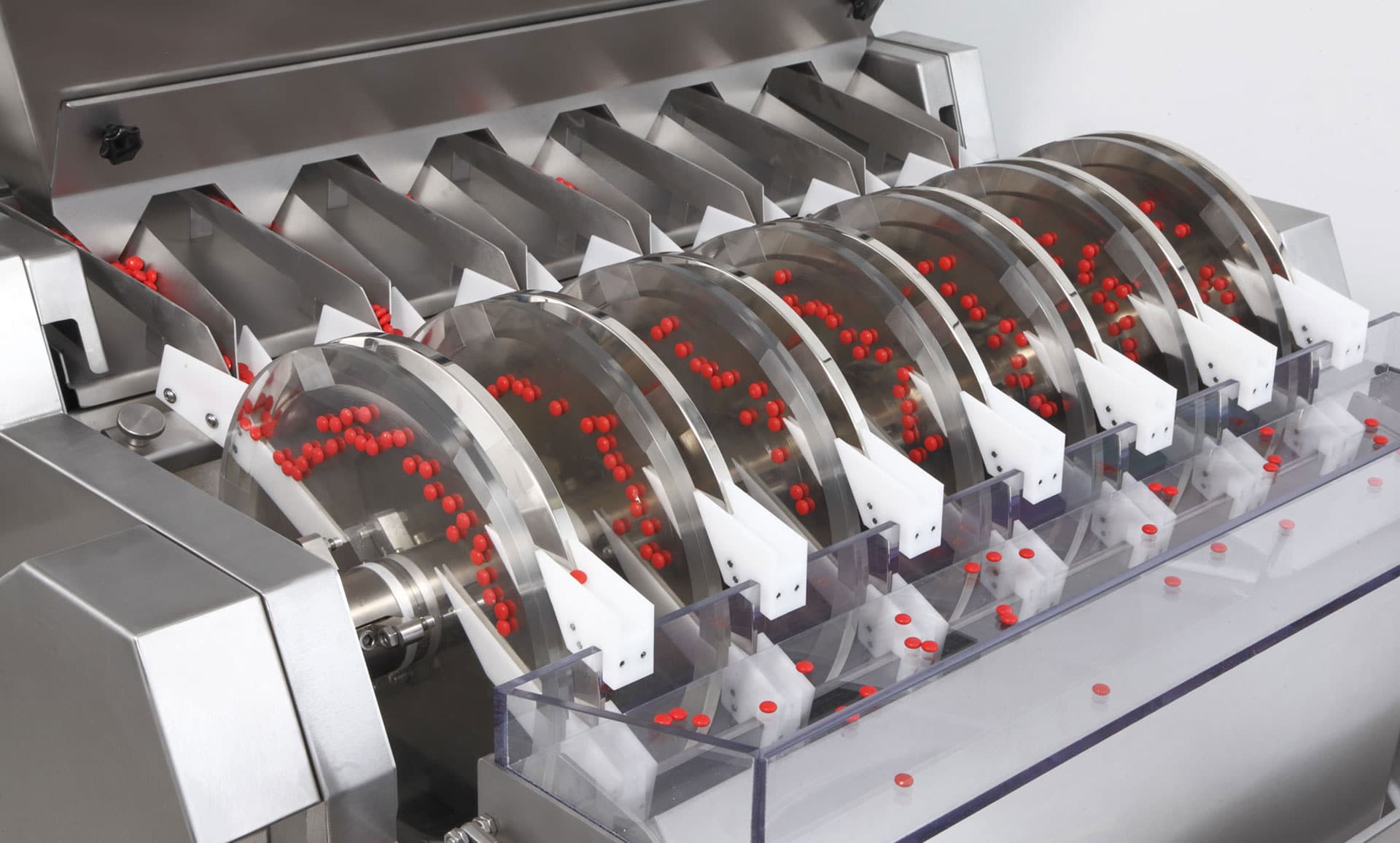

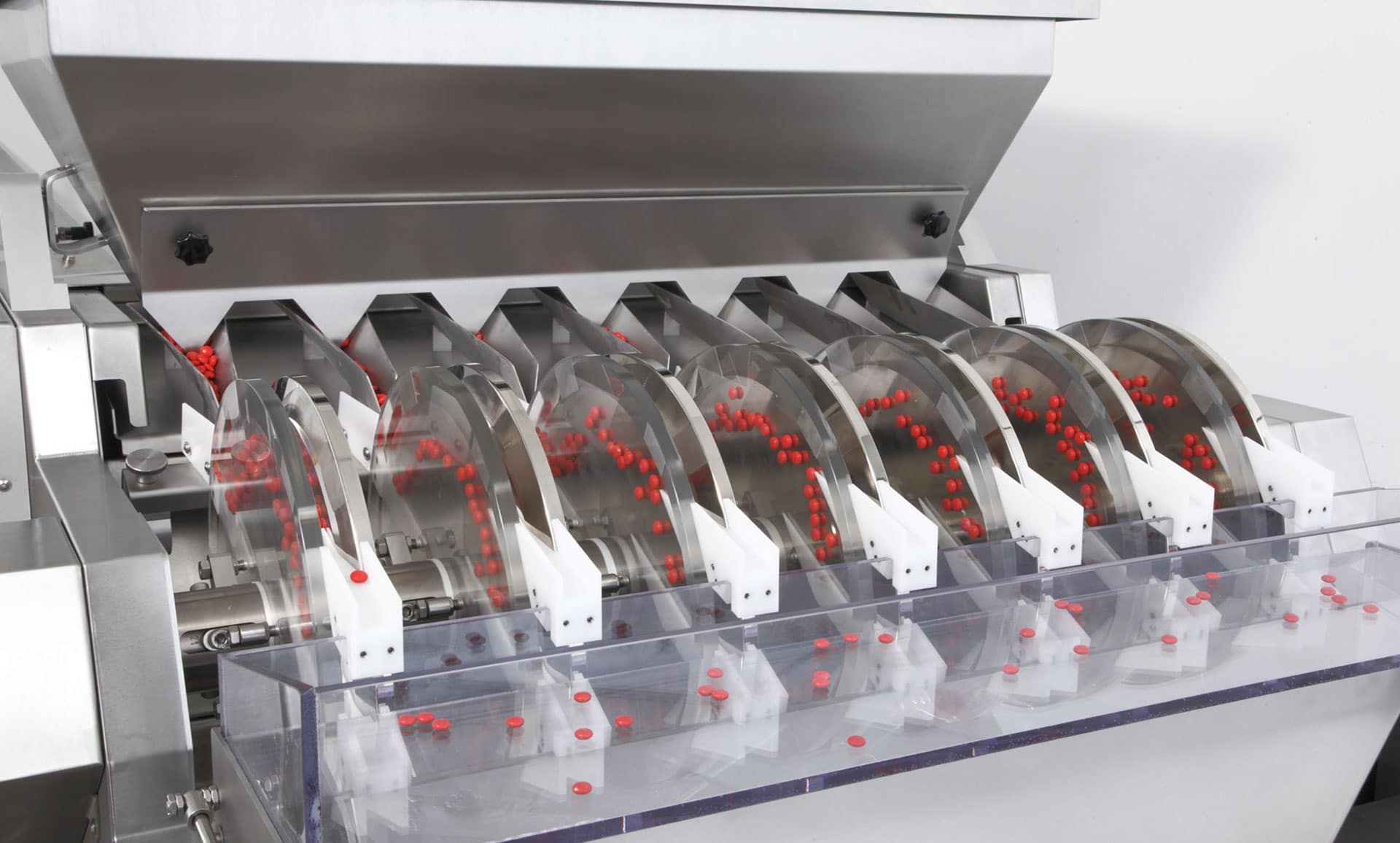

The KA checker is used for the mechanical checking of the thickness of sugar-coated or film-coated pills, capsules or tablets. For process monitoring, the feeding hopper is filled with tablets to be tested. From there, a vibration system moves the tablets to the pairs of rotating sorting discs where they are sorted by consistency.

In process monitoring, the entire process as well as thickness can be verfied via a touch panel. The thickness measurement can be set with a tolerance of
± 0.1mm.

Sorting into the three tablet groups at a glance

  1. Tablets that are too thick will be moved into a tray above the ejector plate
  2. Tablets that are too thin will be moved into a tray below the middle ejector plate
  3. Accepted tablets that are located between the upper and middle ejector plates: will be moved to the production area


Benefits of the Tablet Checker

Reproducible settings
Precise calibration
Valid process
Low maintenance and easy cleaning
Versatile integration into the production process
Capacity: up to 1,000,000 tablets/h

Our product brochure for tablet sorting with the KA Tablet Checker is available for download here:

Show Product brochure



Technische Merkmale

Variations and
Technical Features

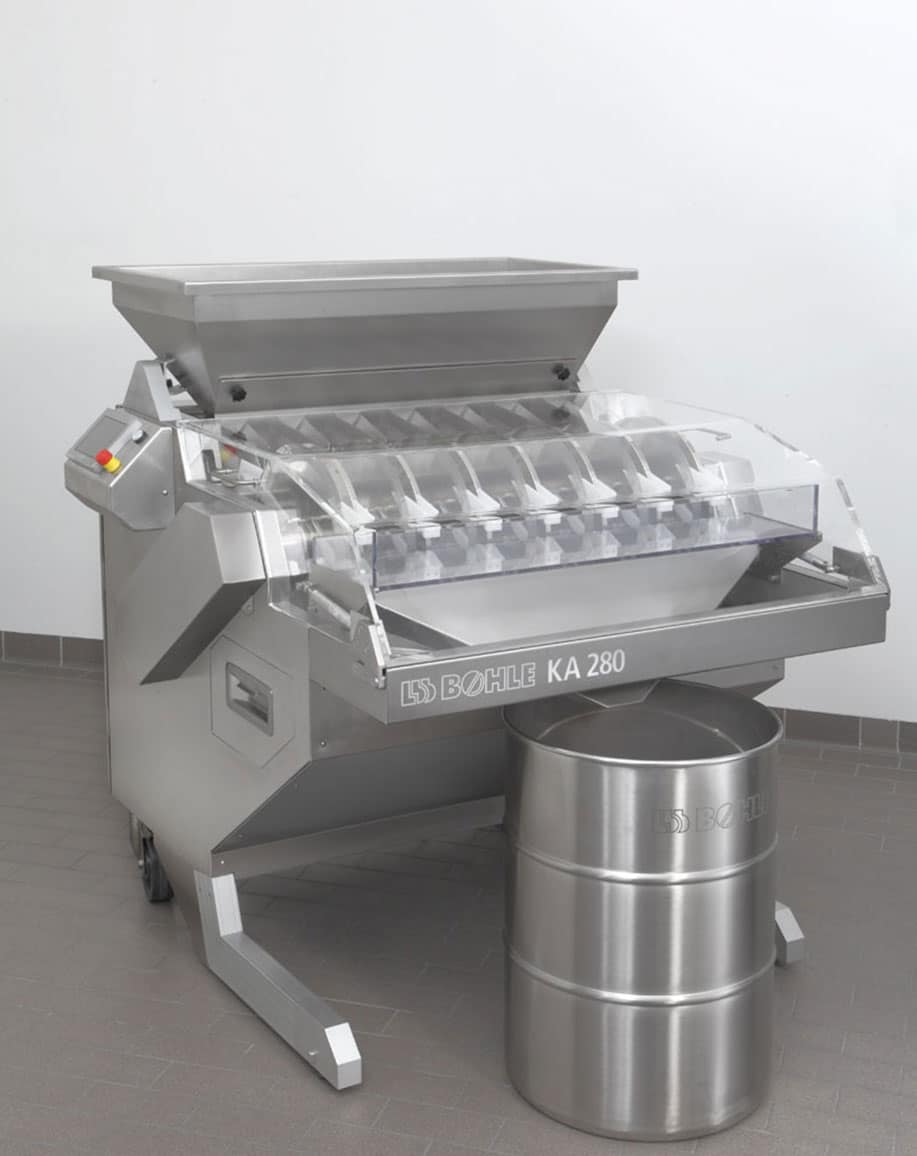

We offer our Tablet Checkers in size KA 280.

Our product brochure for tablet sorting with the KA Tablet Checker is available for download here:

Show Product brochure

The following list provides an initial overview of our tablet sorting system. We look forward to your request for detailed information.

Capacity up to 1.000.000 tablets/h
Dimensions (L x W x H) 1300 x 1200 x 1400 mm
Tablet thickness 3 – 9 mm
