Rotation Sieve for the
pharmaceutical industry

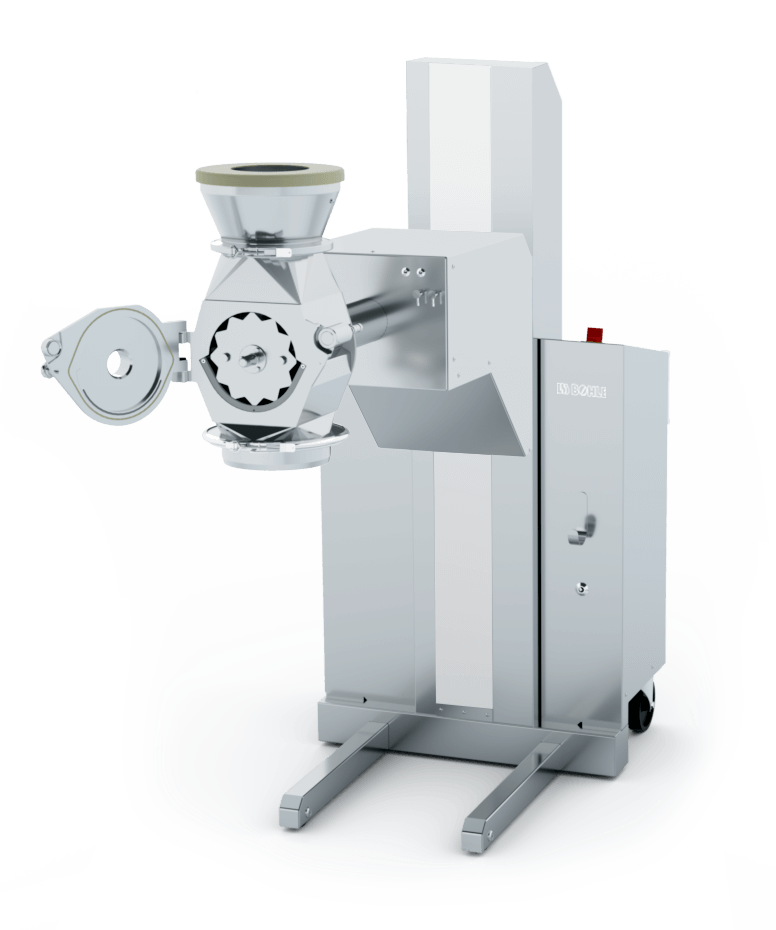

Rotation Sieve - BRS

The BRS Bohle Rotation Sieve is a mobile and space-saving sieving unit for various applications in pharmaceutical, food and chemical production. Many years of experience in sieving technology have led to continuous further development of the sieve, standardization, and adjustment to the specific requirements in the industry.

BRS

Text

Sieving with the Rotation Sieve by L.B. Bohle

The BRS is used for milling powder, agglomerates, and granules. Use of various sieving inserts allows sieving of dry and wet products. The BRS can be deployed flexibly and placed right at the sieving process site with its integrated undercarriage. The entire sieve container features electric height adjustment, so that the sieve can be placed in the material flow between two containers without any further tools, and docked dust-free, e.g., with a silicone diaphragm.

Convenient operation via HMI

The rotation sieve is operated via an integrated touch panel.

Benefits of the SIMATIC panel visualisation::

  1. Batch operation
  2. Manual operation
  3. Service operation

Versatile Integration into the production process

The application options of the BRS are very flexible. The rotation sieve can be combined easily and versatile with other L.B. Bohle systems.
The integration options in complex production lines are manifold:

  • Integration with lifting columns and superordinate control systems
  • Filling/emptying or transfer processes at process machines, such as granulators or blenders
  • Weighing systems
  • Filling of or transfer between containers

Vorteile

Benefits of the Rotation Sieve

Standardized design
Ergonomic, GMP-compliant design for optimal operation and cleaning
Fast and easy cleaning and maintenance
High flexibility due to different sieve inserts and optional equipment versions
Versatile integration into the production process
Mobile sieve unit – fast and easy positioning
Ease of operation through use of a PLC with touch panel visualization
USB-connection for log output

Technische Merkmale

Variation and
Technical Features

The following list provides an initial overview of our rotation sieve.

We look forward to your request for detailed information.

Dimensions (LxWxH)1944 x 905 x 1980 mm
Weight420 kg
Output200 kg/h (product-dependent up to 400 kg)
Speed range0 – 190 U/min
